Adapters

TC2050-XILINX-M



The TC2050‐XILINX-M is an adapter designed to be plugged into a 2mm female 14‐pin Header found on Xilinx compatible programming cables such as Digilent's JTAG HS2 and HS3 and similar programmers.

Although primarily intended for use with our patented TC2050‐IDC Plug‐of‐Nails™ Cables, this adapter may be useful to people wishing to use a 10‐pin 0.1” ribbon header on their PCB.



See also the TX2050-XILINX Female version of this adapter which plugs into Xilinx Platform Cable and similar debuggers.

See also the newer TC-XILINX6 and TC-XLINIX6-M adapters for use with 6-pin TC2030-IDC cables.


$29.95

TC-XILINX6-M Xilinx 14-pin 2mm to 6-pin 0.1" TC2030-IDC Adapter

The TC-XILINX6-M is an adapter designed to be plugged into a Female 2mm 14-pin header found on programming cables for Xilinx such as Digilent JTAG-HS2 and Digilent JTAG-HS3 and similar programmers.

Although primarily intended for use with our patented TC2030-IDC or TC2030-IDC-NL Plug‐of‐Nails™ Cables, this adapter may be useful to people wishing to use a 6‐pin 0.1” ribbon header on their PCB instead of the native 2mm 14-pin header.

For programmers such as Xilinx Platform Cable USB II DLC10 fitted with a male 14-pin header, see TC-XILINX6

Also see the similar TC2050-XILINX-M adapter solution that adapts to a 10-pin 0.1" header for TC2050-IDC cables.

TC2030 Pin Number Signal

1 VREF*
2 TMS/SS/PROG
3 TDI/MOSI/DIN
4 TCK/SCLK/CCLK
5 GND*
6 TDO/MISO/DONE



$29.95

TC-XILINX6 Xilinx 14-pin 2mm to 6-pin 0.1" TC2030-IDC Adapter

TC-XILINX6 Adapter converts XILINX Platform Cable 14-pin 2mm to 6-pin 2.54mm for use with TC2030-IDC cables Reverse side of Tag-Connect TC-XILINX6 Adapter which converts XILINX Platform Cable 14-pin 2mm to 6-pin 2.54mm for use with TC2030-IDC cables

The TC-XILINX6 is an adapter designed to be plugged into the 2mm 14-pin header found on Xilinx's Platform Cable II and compatible programmers. Although primarily intended for use with our patented TC2030-IDC or TC2030-IDC-NL Plug‐of‐Nails™ Cables, this adapter may be useful to people wishing to use a 6‐pin 0.1” ribbon header on their PCB instead of the native 2mm 14-pin header.

See also the similar TC2050-XILINX adapter solution that adapts to a 10-pin 0.1" header for TC2050-IDC cables.

TC2030 Pin Number Signal

1 VREF*
2 TMS/SS/PROG
3 TDI/MOSI/DIN
4 TCK/SCLK/CCLK
5 GND*
6 TDO/MISO/DONE



$29.95

TC-LATTICE

TC-LATTICE adapter with 6-pin ribbon cable attached Lattice "Programming Cable" with TC-LATTICE adapter

(Adapter PCB only - Lattice HW-USBN-2B and Tag-Connect TC2030-IDC cable not included)

The TC-LATTICE Adapter allows users of Lattice's HW-USBN-2B Programming Cable to use Tag-Connect TC2030-IDC or TC2030-IDC-NL cable instead of the supplied flying lead solution for programming various Lattice Semiconductor devices.

The adapter has a 12-pin (2x6) 0.1" female header that plugs into the Lattice HW-USBN-2B programmer and supplies a 6-pin (2x3) 0.1" male box header suitable for use with Tag-Connect TC2030-IDC Plug-of-NailsTM Cables, eliminating the need for a physical connector on each and every target PCB.

By default, the TC-LATTICE adapter comes fitted with a 500 Ohm resistor connected between VCC and GND. This resolves the issue of the Lattice HW-USBN-2B unexpectedly raising VCC on low-power targets and eliminates the need for the resistor to be fitted to each of your target PCB's - see http://www.latticesemi.com/en/Support/AnswerDatabase/2/2/0/2205

TC2030 Pin Number Signal

1 VCC*
2 TMS
3 TDI/SI
4 TCK/SCLK
5 GND*
6 TDO/SO

* 500 Ohm Resistor fitted on back of Adapter PCB between VCC and GND



$29.95

ARM20-CTX 20-Pin to TC2030-IDC Adapter for Cortex

ARM 20-pin to 6-pin (TC2030-IDC) Cable adapter for Cortex SWD

The Tag-Connect ARM20-CTX adapter board allows our TC2030-IDC cables to be used for ARM SWD (Single Wire Debug) applications. Although intended for use with our patented TC2030-IDC (and TC2030-IDC-NL) Plug-of-Nails™ Cables, the adapter may be useful to people wishing to use 6-pin 0.1” ribbon headers on their PCB instead of the traditional 20-Pin header.

Please note the TC2030-IDC or TC2030-IDC-NL cable is purchased separately, the cables and Segger JLINK seen in the pictures are not included!

Download the Datasheet here.





$29.95

TC-RENESAS Adapter for Renesas E1 and E8a Debuggers

TC-Renesas Adapter plugged into Renesas E1 Debugger

The TC-RENESAS Adapter allows TC2030-IDC or TC2050-IDC Plug-of-NailsTM Cables to be used with Renesas E1 or E8a Debuggers. The adapter can be used with all Renesas MCU's compatible with E1 or E8a.

Download the Datasheet here.

Purchase from our distributors

$29.95

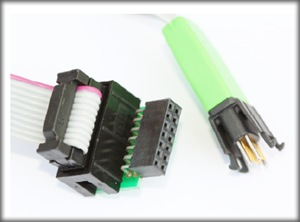

TC2050-XILINX



The TC2050‐XILINX is an adapter designed to be plugged into the 2mm 14‐pin Header found on Xilinx’s Platform
Cable II and compatible programmers. Although primarily intended for use with our patented TC2050‐IDC Plug‐of‐
Nails™ Cables, this adapter may be useful to people wishing to use a 10‐pin 0.1” ribbon header on their PCB.


If you use a Digilent JTAG-HS2 or JTAG-HS3 cable with female 14-pin 2mm connector, see TC2050-XILINX-M

See also the newer TC-XILINX6 adapter for use with 6-pin TC2030-IDC cables.


$29.95
