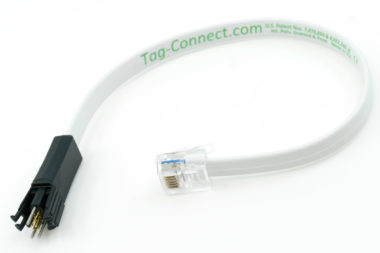

TC2030-MCP-NL 6-Pin No-Legs Cable with RJ12 Modular Plug (for Microchip ICD)
6 pin plug-of-nails™ “no legs” to RJ12 programming cable for Microchip ICD.
Tag-Connect TC2030-MCP-NL programming cable is primarily intended for use in production programming. It is particularly suited to environments where the connection to the PCB is of short duration, and operators are working quickly from board to board.
A major advantage of the TC2030-MCP-NL is the extremely small footprint required on the PCB (hardly any bigger than a surface mount resistor) allowing the minimum possible space on your PCB to be used for the programming connection.
The TC2030-MCP-NL is also compatible with the TC2030-MCP footprint allowing use of the TC2030-MCP for development work and TC2030-MCP-NL for fast programming in production.
The TC2030-MCP-NL can be held in place making it suitable for debugging and development when using TC2030-CLIP board .
Where a sustained connection to the PCB is required, also consider the TC2030-MCP.
Ideal for efficient production programming and also for debugging.
This product is used in the following debugger/device solutions:
This product is used as part of the following solutions for particular debuggers, protocols and devices. Solutions may involve additional cables, adapters or retaining clips, as well as this product you are viewing now. Click on the solution links to see full solutions and installation instructions where applicable.
TI MSP-FET430 for TI MSP430 using SPY-BI-WIRE
Microchip ICD4 for Microchip PIC, Microchip PIC32, dsPIC using PIC ICD/ICSP (standard cable)
Microchip PM3 for Microchip PIC, Microchip PIC32, dsPIC using PIC ICD/ICSP – Requires Microchip AC164111 Adapter (Not incl.)
CCS Programmers for Microchip PIC, Microchip PIC32, dsPIC using PIC ICD/ICSP (standard cable)
Microchip PICkit 3 for Microchip PIC, Microchip PIC32, dsPIC using PIC ICD/ICSP - Requires Microchip AC164110 Adapter (Not incl.)
Microchip ICD 3 for Microchip PIC, Microchip PIC32, dsPIC using PIC ICD/ICSP (standard cable)
