Please see below for a list of Tag-Connect™ small footprint debugging/programming cable solutions for the various Renesas devices using Renesas E1/E2/E2 Lite/E8a/E20 programmers/emulators. Solutions are available for 6 or 10 pin target board connectors using either the 14-pin Renesas connector on the E1/E2 (via adapter included with emulator), E2 Lite, E8a or E20 (via adapter included with emulator) or via the 20-pin Cortex connector on the E2/E2 Lite. Solutions are also available for either “legged” or “no legs” versions of the plug-of-nails™ target board connectors. Use the debugger links to see further information on these options as applicable to particular debuggers.
Renesas emulators cover a wide range of devices. According to current Renesas documentation, between the E1, E2, E2 Lite, E8a and E20 the following devices are covered:
3803L, 3804L, 38D2, 38D5, 78K0, 78K0R, H8, H8S, M16C, M32C, R32C, R8C, RA2A1, RA2E1, RA2L1, RA4E1, RA4M1, RA4M2, RA4M3, RA4W1, RA6E1, RA6M1, RA6M2, RA6M3, RA6M4, RA6M5, RA6T1, RE01-1500KB, RE01-256KB, RE01B, RH850, RL78, RX110, RX111, RX113, RX130, RX13T, RX140, RX210, RX21A, RX220, RX230, RX231, RX23E-A, RX23T, RX23W, RX24T, RX24U, RX610, RX621, RX62G, RX62N, RX62T, RX630, RX631, RX634, RX63N, RX63T, RX64M, RX651, RX65N, RX66N, RX66T, RX671, RX71M, RX72M, RX72N, RX72T, UPD78F073x, UPD78F8043, UPD78F8058, UPD78F8069, V850E, V850E2, V850ES
Important: Check Renesas documentation for required emulator to target board connections for the devices you are working with. See our Renesas programming cables solutions page for more information on the different solutions.
Renesas E1/E2/E2 Lite/E8a/E20 (via 14-pin) to 6-Pin Plug-of-Nails™ - No Legs Debugger mating connector: 14 Pin IDC 0.1" Female
The TC-RENESAS Adapter allows TC2030-IDC 6-pin or TC2050-IDC 10-pin Plug-of-Nails™ Cables to be used with Renesas E1, E2, E2 Lite, E8a or E20 Emulators/Debuggers (and any other Renesas emulators/debuggers providing the standard 14 pin connector). The adapter can be used with all Renesas MCU's compatible with these emulators/debuggers.
See datasheet below for full details of the adapter configuration options for the Renesas debuggers and devices.
Further information is available on our Renesas emulator cable selection page.
Note: Adapter only supplied. Debugger image for illustration only.
The TC2030-IDC-NL is our "No Legs" 6-pin Plug-of-Nails™ programming cable fitted with a 6-pin 0.1" pitch ribbon connector.
With its tiny 0.02 sq inch footprint the TC2030 Tag-Connector has a footprint using about the same PCB space as an 0805 resistor.
The "No Legs" versions of our cables are designed to be held in place by hand for a fast programming operation or can be temporarily retained in place for debugging when used with our TC2030-CLIP boards.
See TC2030-IDC for the "Legged" version which has four additional feet which hold it securely in place on the PCB for debugging or programming use.
Popular applications include programming Atmel AVR, many Renesas MCU's (when used with our TC-Renesas E1 / E8a adapter) and Zilog. Also great for bringing our SPI / IIC / RS232 and test signal access.
Also available in 10"/254mm lengths (TC2030-IDC-NL-10). Contact us for 36" length versions of these cables.
This product is intended to temporarily hold a TC2030 -NL ("No Legs") cable in place on a PCB. This solution will help when board space is at a premium and you need a hands free solution for debugging. Supplied as pack of 3.
We recommend keeping a few spare of these since the tiny boards are easy to misplace when working on the bench.
For a more robust solution consider a TC2030 legged cable.
Renesas E1/E2/E2 Lite/E8a/E20 (via 14-pin) to 6-Pin Plug-of-Nails™ - With Legs Debugger mating connector: 14 Pin IDC 0.1" Female
The TC-RENESAS Adapter allows TC2030-IDC 6-pin or TC2050-IDC 10-pin Plug-of-Nails™ Cables to be used with Renesas E1, E2, E2 Lite, E8a or E20 Emulators/Debuggers (and any other Renesas emulators/debuggers providing the standard 14 pin connector). The adapter can be used with all Renesas MCU's compatible with these emulators/debuggers.
See datasheet below for full details of the adapter configuration options for the Renesas debuggers and devices.
Further information is available on our Renesas emulator cable selection page.
Note: Adapter only supplied. Debugger image for illustration only.
The TC2030-IDC is our "Legged" 6-pin Plug-of-Nails™ programming cable fitted with a 6-pin 0.1" pitch ribbon connector.
The "Legged" or "With Legs" versions of our cables snap directly into a tiny footprint of holes and pads in your PCB. By eliminating the need for a mating header component, you not only save PCB space but also cost on every board!
See TC2030-IDC-NL for the "No Legs" version which has an even smaller footprint of about the size of an 0805 SMT resistor.
Popular applications include programming Atmel AVR, many Renesas MCU's (when used with our TC-Renesas E1 / E8a adapter) and Zilog. Also great for bringing our SPI / IIC / RS232 and test signal access.
Also available in 10" lengths (TC2030-IDC-10). Contact us for 36" length versions of these cables.
The TC-RENESAS Adapter allows TC2030-IDC 6-pin or TC2050-IDC 10-pin Plug-of-Nails™ Cables to be used with Renesas E1, E2, E2 Lite, E8a or E20 Emulators/Debuggers (and any other Renesas emulators/debuggers providing the standard 14 pin connector). The adapter can be used with all Renesas MCU's compatible with these emulators/debuggers.
See datasheet below for full details of the adapter configuration options for the Renesas debuggers and devices.
Further information is available on our Renesas emulator cable selection page.
Note: Adapter only supplied. Debugger image for illustration only.
The ECV3-06-IDC is a 6-pin Edge-Connect™ connector terminated in a 6-pin 0.1" pitch female IDC. This uses version 3 of our patented literal edge of the board connector which more robust and more convenient than previous versions.
ECV3 is the third generation in the Edge-Connect™ family. ECV3 is NOT compatible with the previous Edge-Connect family and both will continue to be supported as current products into the future.
ECV3 makes some minor improvements adding greater robustness, improved convenience and is designed to be a mainstream product.
Edge-Connect™ is the patented newest member in the family of Programming Connectors and Cables from Tag-Connect. ECV3-06 is the 6-pin version.
By connecting to the literal edge of the PCB (not the surface near the edge like traditional edge-connectors) Edge-Connect™ is designed to essentially eliminate the wasted real-estate needed by JTAG programming and test connectors.
Edge-Connect™ is an Ideal solution for space-sensitive PCBs and modules that don’t have room on the board for traditional connectors but which still need a means of programming firmware and testing.
We've designed Edge-Connect™so that we can offer low-cost, fast-turn, customized connector solutions to meet the unique requirements of your PCB - Contact Us if you have a custom requirement.
Connects directly to the literal edge of the PCB
PCB snaps directly onto the Edge-Connect™
Zero Component Cost on the PCB
Maximizes available PCB real-estate
Eliminates the cost of a connector on every board
Requires just one tiny locating hole
Low profile edge access ideal for use with stacked PCB’s with no access headroom
Cant be connected backwards due to keyed feature
Standard or custom design configurations available
Alternative pitch? Three castellated edges? No problem!
No Header! - No Brainer!
Instead of using the usual space-costly Surface Mount or Plated Through-Hole connectors, Edge-Connect™ has springy gold-plated contacts that connect directly to the literal edge of the target PCB using edge castellation.
A Castellated PCB edge is a board edge that has plated through holes that are placed overhanging the edge of the board and typically made at little to no extra cost even from most cheap proto-board fab services (often a check box in the online quote is marked "Castellated Holes").
Castellated edges are commonly used on RF, WiFi, BLE and IoT sensor modules making them suitable for soldering as an SMT component onto host PCB’s using the castellated holes as pins. Edge-Connect™ allows test and programming and even debugging without first soldering the module to the host PCB. This makes it very useful for factory test and programming of the module.
EC-06 has a castellation pitch of 1.27mm and requires a single tiny non-plated through hole to locate and hold the PCB in place.
See below for the latest datasheets. We will be publishing revisions to the datasheet.
Note: ECV3-06 with ribbon cable and IDC connector only supplied, Demo PCB not included.
Renesas E1/E2/E2 Lite/E8a/E20 (via 14-pin) to 10-Pin Plug-of-Nails™ - No Legs Debugger mating connector: 14 Pin IDC 0.1" Female
The TC-RENESAS Adapter allows TC2030-IDC 6-pin or TC2050-IDC 10-pin Plug-of-Nails™ Cables to be used with Renesas E1, E2, E2 Lite, E8a or E20 Emulators/Debuggers (and any other Renesas emulators/debuggers providing the standard 14 pin connector). The adapter can be used with all Renesas MCU's compatible with these emulators/debuggers.
See datasheet below for full details of the adapter configuration options for the Renesas debuggers and devices.
Further information is available on our Renesas emulator cable selection page.
Note: Adapter only supplied. Debugger image for illustration only.
Tag-Connect's TC2050-IDC-NL "No Legs" Plug-of-Nails™ programming cable is a 10-conductor cable fitted with a spring-pin Tag-Connector that conveniently plugs directly into your PCB and terminates in a 0.1" ribbon connector.
Plugs straight to your PCB - No mating connector or header required!
Requires only a tiny 0.03" footprint of pads and locating holes in your PCB.
Zero Cost Per Board!
Tiny Footprint!
High-Reliability Spring-Pins make a Secure Connection and are rated for over 100,000 operations.
Footprint has no height and can reduce the size and space requirements of your PCB.
A great way to make test and debug signals available at no cost and with minimal board space.
Can be retained in place using a TC2050-CLIP board.
Tag-Connect cables provide a simple, reliable means of connecting Debuggers and Programmers or other test equipment to your PCB's while lowering board costs and facilitating efficient production programming. Tag-Connect uses a specially designed (Patent Pending) connector which eliminates the need for putting a programming header or other mating connector on every PCB. Instead, Tag-Connect uses tried and tested spring-pins rated for over 100,000 operations to make a secure connection to a special footprint pattern of pads and locating holes in your PCB.
The tiny "No Legs" footprint takes only 0.03 square inches (about the same board space as a couple of SMT resistors) which means you can locate the footprint right next to the MCU if desired.
This 10-conductor cable has a TC2050-NL Tag-Connector on one end and a standard 0.1" ribbon connector on the other and is suitable for use with most many MCUs / FPGAs and JTAG programming and debug operations.
A growing range of adaptors are available for specific and generic applications such as Xilinx SPARTAN and VERTEX FPGAs, TI MSP430 (TC2050-IDC-430), etc
Also available in self-retaining "legged" version TC2050-IDC.
This product is intended to temporarily hold a TC2050-NL cable in place on a PCB. The solution will help when board space is premium and you need to perform a hands-free programming or debugging operation. For a more robust and convenient debugging connection consider using the TC2050 legged cable and footprint. Supplied as pack of 3.
We recommend keeping a few spare of these since they are easily misplaced when working on the desktop. Over time they may lose some grip.
Renesas E1/E2/E2 Lite/E8a/E20 (via 14-pin) to 10-Pin Plug-of-Nails™ - With Legs Debugger mating connector: 14 Pin IDC 0.1" Female
The TC-RENESAS Adapter allows TC2030-IDC 6-pin or TC2050-IDC 10-pin Plug-of-Nails™ Cables to be used with Renesas E1, E2, E2 Lite, E8a or E20 Emulators/Debuggers (and any other Renesas emulators/debuggers providing the standard 14 pin connector). The adapter can be used with all Renesas MCU's compatible with these emulators/debuggers.
See datasheet below for full details of the adapter configuration options for the Renesas debuggers and devices.
Further information is available on our Renesas emulator cable selection page.
Note: Adapter only supplied. Debugger image for illustration only.
Tag-Connect's TC2050-IDC "Legged" Plug-of-Nails™ programming cable is a 10-conductor cable fitted with a spring-pin Tag-Connector that conveniently plugs directly into your PCB and terminates in a 0.1" ribbon connector.
Plugs straight to your PCB - No mating connector or header required!
Requires only a tiny footprint of pads and locating holes in your PCB.
Zero Cost Per Board!
Tiny Footprint!
High-Reliability Spring-Pins make a Secure Connection and are rated for over 100,000 operations.
Footprint has no height and can reduce the size and space requirements of your PCB.
A great way to make test and debug signals available at no cost and with minimal board space.
Tag-Connect cables provide a simple, reliable means of connecting Debuggers and Programmers or other test equipment to your PCB's while lowering board costs and facilitating efficient production programming. Tag-Connect uses a specially designed (Patent Pending) connector which eliminates the need for putting a programming header or other mating connector on every PCB. Instead, Tag-Connect uses tried and tested spring-pins rated for over 100,000 operations to make a secure connection to a special footprint pattern of pads and locating holes in your PCB.
The legged version footprint takes about the same board space as two or three SMT resistors which means you can locate the footprint right next to the MCU if desired.
This 10-conductor cable has a TC2050 Tag-Connector on one end and a standard 0.1" ribbon connector on the other and is suitable for use with most many MCUs / FPGAs and JTAG programming and debug operations.
A growing range of adaptors are available for specific and generic applications such as Xilinx SPARTAN and VERTEX FPGAs, TI MSP430 (TC2050-IDC-430), etc
See also TC2050-IDC-NL (no-legs) version with a tiny 0.03” footprint.
Tag-Connect's TC2050-IDC "Legged" Plug-of-Nails™ programming cable is a 10-conductor cable fitted with a spring-pin Tag-Connector that conveniently plugs directly into your PCB and terminates in a 0.1" ribbon connector.
Plugs straight to your PCB - No mating connector or header required!
Requires only a tiny footprint of pads and locating holes in your PCB.
Zero Cost Per Board!
Tiny Footprint!
High-Reliability Spring-Pins make a Secure Connection and are rated for over 100,000 operations.
Footprint has no height and can reduce the size and space requirements of your PCB.
A great way to make test and debug signals available at no cost and with minimal board space.
Tag-Connect cables provide a simple, reliable means of connecting Debuggers and Programmers or other test equipment to your PCB's while lowering board costs and facilitating efficient production programming. Tag-Connect uses a specially designed (Patent Pending) connector which eliminates the need for putting a programming header or other mating connector on every PCB. Instead, Tag-Connect uses tried and tested spring-pins rated for over 100,000 operations to make a secure connection to a special footprint pattern of pads and locating holes in your PCB.
The legged version footprint takes about the same board space as two or three SMT resistors which means you can locate the footprint right next to the MCU if desired.
This 10-conductor cable has a TC2050 Tag-Connector on one end and a standard 0.1" ribbon connector on the other and is suitable for use with most many MCUs / FPGAs and JTAG programming and debug operations.
A growing range of adaptors are available for specific and generic applications such as Xilinx SPARTAN and VERTEX FPGAs, TI MSP430 (TC2050-IDC-430), etc
See also TC2050-IDC-NL (no-legs) version with a tiny 0.03” footprint.
The ECV3-10-IDC is a 10-pin Edge-Connect™ connector terminated in a 10-pin 0.1″ pitch female IDC. This uses version 3 of our patented literal edge of the board connector which more robust and more convenient than previous versions.
ECV3 is the third generation in the Edge-Connect™ family. ECV3 is NOT compatible with the previous Edge-Connect family and both will continue to be supported as current products into the future. ECV3 makes some minor improvements adding greater robustness, improved convenience and is designed to be a mainstream product.
Edge-Connect™ is the patent-pending newest member in the family of Programming Connectors and Cables from Tag-Connect. EC10-IDC is the 10-pin version.
By connecting to the literal edge of the PCB (not the surface near the edge like traditional edge-connectors) Edge-Connect™ is designed to essentially eliminate the wasted real-estate needed by JTAG programming and test connectors.
Edge-Connect™ is an Ideal solution for space-sensitive PCB’s and modules that don’t have room on the board for traditional connectors but which still need a means of programming firmware and testing.
We've designed Edge-Connect™ so that we can offer low-cost, fast-turn, customized connector solutions to meet the unique requirements of your PCB - Contact Us if you have a custom requirement.
Connects directly to the literal edge of the PCB
PCB snaps directly onto the Edge-Connect™
Zero Component Cost on the PCB
Maximizes available PCB real-estate
Eliminates the cost of a connector on every board
Requires just one tiny locating hole
Low profile edge access ideal for use with stacked PCB’s with no access headroom
Cant be connected backwards due to keyed feature
Standard or custom design configurations available
Alternative pitch? Three castellated edges? No problem!
No Header! - No Brainer!
Instead of using the usual space-costly Surface Mount or Plated Through-Hole connectors, Edge-Connect™ has springy gold-plated contacts that connect directly to the literal edge of the target PCB using edge castellation.
A Castellated PCB edge is a board edge that has plated through holes that are placed overhanging the edge of the board and typically made at little to no extra cost even from most cheap proto-board fab services (often a check box in the online quote is marked "Castellated Holes").
Castellated edges are commonly used on RF, WiFi, BLE and IoT sensor modules making them suitable for soldering as an SMT component onto host PCB’s using the castellated holes as pins. Edge-Connect™ allows test and programming and even debugging without first soldering the module to the host PCB. This makes it very useful for factory test and programming of the module.
EC10-IDC has a castellation pitch of 1.27mm and requires a single tiny non-plated through hole to locate and hold the PCB in place.
See below for the latest datasheets. We will be publishing revisions to the datasheets.
Note: ECV3-10-IDC with ribbon cable and IDC connector only supplied, Demo PCB not included.
Renesas E1/E2/E2 Lite/E8a/E20 (via 20-pin) to 6-Pin Plug-of-Nails™ - No Legs Debugger mating connector: 20 Pin IDC 0.05" Female (Mates with FTSH)
This Cortex programming cable is the same as the TC2030-CTX-NL cable except it has a 0.05" (1.27mm) pitch 20-pin connector compatible with i-Jet and ULINK pro. This won't fit the traditional 20-pin 0.1" connector such as found on the standard J-Link debuggers).
The cable itself has a ten pin ribbon cable and 6-pin TC2030-NL "No legs" Tag-Connect small footprint supporting ARM Cortex MCU's.
Note: Cable only supplied, IAR's I-JET and demo board not included!
This product is intended to temporarily hold a TC2030 -NL ("No Legs") cable in place on a PCB. This solution will help when board space is at a premium and you need a hands free solution for debugging. Supplied as pack of 3.
We recommend keeping a few spare of these since the tiny boards are easy to misplace when working on the bench.
For a more robust solution consider a TC2030 legged cable.
Renesas E1/E2/E2 Lite/E8a/E20 (via 20-pin) to 6-Pin Plug-of-Nails™ - With Legs Debugger mating connector: 20 Pin IDC 0.05" Female (Mates with FTSH)
This Cortex programming cable is the same as the TC2030-CTX cable except it has a 0.05" (1.27mm) pitch 20-pin connector compatible with i-Jet and ULINK pro. This won't fit the traditional 20-pin 0.1" connector such as found on the standard J-Link debuggers).
The cable itself has a ten pin ribbon cable and 6-pin TC2030 Tag-Connect footprint supporting ARM Cortex MCU's.
Note: Cable only supplied, IAR's I-JET and demo board not included!

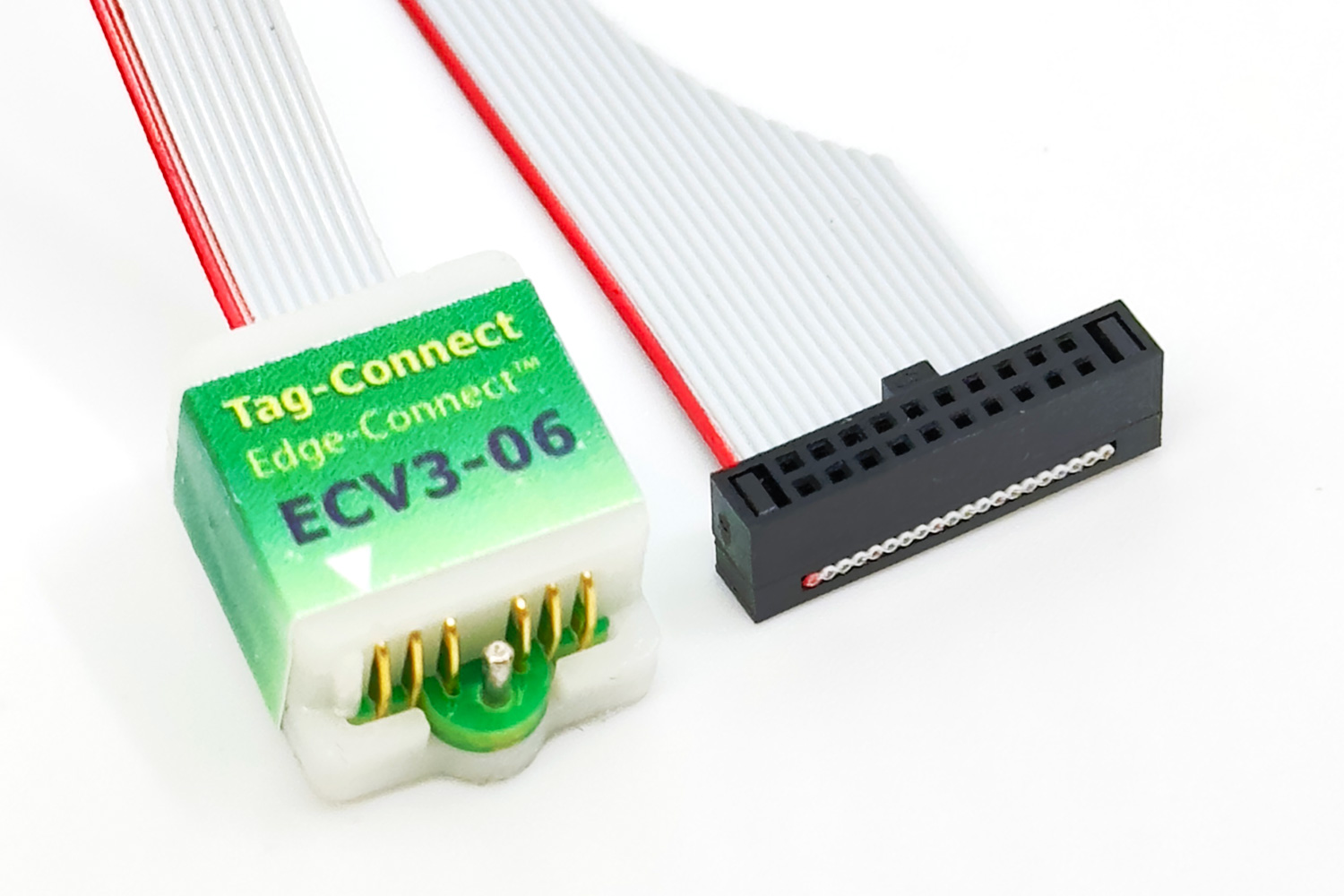

Renesas E1/E2/E2 Lite/E8a/E20 (via 20-pin) to 6-Pin Edge-Connect™ Debugger mating connector: 20 Pin IDC 0.05" Female (Mates with FTSH)
Edge-Connect™ - The Leading-Edge Connector!
This special cable has a 6-pin ECV3-06 Edge-Connect™ connector and a 20-pin 0.05″ pitch female IDC that mates with the 20-pin Cortex debug connector as found in debuggers such as IAR’s I-Jet or Keil’s ULINKpro. This uses version 3 of our patented literal edge of the board connector which is more robust and more convenient than previous versions.
ECV3 is the third generation in the Edge-Connect™ family. ECV3 is NOT compatible with the previous Edge-Connect family and both will continue to be supported as current products into the future.
ECV3 makes some minor improvements adding greater robustness, improved convenience and is designed to be a mainstream product.
Edge-Connect™ is the patent-pending newest member in the family of Programming Connectors and Cables from Tag-Connect. ECV3-06 is the 6-pin connector.
By connecting to the literal edge of the PCB (not the surface near the edge like traditional edge-connectors) Edge-Connect™ is designed to essentially eliminate the wasted real-estate needed by JTAG programming and test connectors.
Edge-Connect™ is an Ideal solution for space-sensitive PCB’s and modules that don’t have room on the board for traditional connectors but which still need a means of programming firmware and testing.
We've designed Edge-Connect™so that we can offer low-cost, fast-turn, customized connector solutions to meet the unique requirements of your PCB - Contact Us if you have a custom requirement.
Connects directly to the literal edge of the PCB
PCB snaps directly onto the Edge-Connect™
Zero Component Cost on the PCB
Maximizes available PCB real-estate
Eliminates the cost of a connector on every board
Requires just one tiny locating hole
Low profile edge access ideal for use with stacked PCB’s with no access headroom
Cant be connected backwards due to keyed feature
Standard or custom design configurations available
Alternative pitch? Three castellated edges? No problem!
No Header! - No Brainer!
Instead of using the usual space-costly Surface Mount or Plated Through-Hole connectors, Edge-Connect™ has springy gold-plated contacts that connect directly to the literal edge of the target PCB using edge castellation.
A Castellated PCB edge is a board edge that has plated through holes that are placed overhanging the edge of the board and typically made at little to no extra cost even from most cheap proto-board fab services (often a check box in the online quote is marked "Castellated Holes").
Castellated edges are commonly used on RF, WiFi, BLE and IoT sensor modules making them suitable for soldering as an SMT component onto host PCB’s using the castellated holes as pins. Edge-Connect™ allows test and programming and even debugging without first soldering the module to the host PCB. This makes it very useful for factory test and programming of the module.
ECV3-06-CTX-20 has a castellation pitch of 1.27mm and requires a single tiny non-plated through hole to locate and hold the PCB in place.
New datasheet coming soon. Note that this product terminates in a 20-pin 0.05" IDC.
Note: ECV3-06-CTX-20 with ribbon cable and 20-pin Cortex connector only supplied, Demo PCB not included.
Renesas E1/E2/E2 Lite/E8a/E20 (via 20-pin) to 10-Pin Plug-of-Nails™ - No Legs Debugger mating connector: 20 Pin IDC 0.05" Female (Mates with FTSH)
The TC2050-IDC-NL-050-ALL-20 programming cable has an 0.050" pitch ribbon connector suitable for ULINK2 and similar debuggers that use the Samtec FTSH-110-01 style micro-header. This uses the "No Legs" version of the TC2050 connector, ideally suited to production where short board connection times are required but also suitable for development.
The pin connections are 1-1 and pins 1-10 are connected, pins 11-20 are not connected in the cable.
Please refer to TC2050-IDC-NL datasheet for the PCB footprint information.
This product is intended to temporarily hold a TC2050-NL cable in place on a PCB. The solution will help when board space is premium and you need to perform a hands-free programming or debugging operation. For a more robust and convenient debugging connection consider using the TC2050 legged cable and footprint. Supplied as pack of 3.
We recommend keeping a few spare of these since they are easily misplaced when working on the desktop. Over time they may lose some grip.
Renesas E1/E2/E2 Lite/E8a/E20 (via 20-pin) to 10-Pin Plug-of-Nails™ - With Legs Debugger mating connector: 20 Pin IDC 0.05" Female (Mates with FTSH)
The TC2050-IDC-050-ALL-20 programming cable has an 0.050" pitch ribbon connector suitable for ULINK2 and similar debuggers that use the Samtec FTSH-110-01 style micro-header.
The pin connections are 1-1 and pins 1-10 are connected, pins 11-20 are not connected in the cable.
Please refer to TC2050-IDC datasheet for the PCB footprint information.
Renesas E1/E2/E2 Lite/E8a/E20 (via 20-pin) to 10-Pin Edge-Connect™ Debugger mating connector: 20 Pin IDC 0.05" Female (Mates with FTSH)
Edge-Connect™ - The Leading-Edge Connector!
This special cable has a 6-pin ECV3-10 Edge-Connect™ connector to 20-pin 0.050″ pitch ribbon connector.
ECV3 is the third generation in the Edge-Connect™ family. ECV3 is NOT compatible with the previous Edge-Connect family and both will continue to be supported as current products into the future.
ECV3 makes some minor improvements adding greater robustness, improved convenience and is designed to be a mainstream product.
Edge-Connect™ is the patent-pending newest member in the family of Programming Connectors and Cables from Tag-Connect. ECV3-10 is the 10-pin connector.
By connecting to the literal edge of the PCB (not the surface near the edge like traditional edge-connectors) Edge-Connect™ is designed to essentially eliminate the wasted real-estate needed by JTAG programming and test connectors.
Edge-Connect™ is an Ideal solution for space-sensitive PCB’s and modules that don’t have room on the board for traditional connectors but which still need a means of programming firmware and testing.
We've designed Edge-Connect™so that we can offer low-cost, fast-turn, customized connector solutions to meet the unique requirements of your PCB - Contact Us if you have a custom requirement.
Connects directly to the literal edge of the PCB
PCB snaps directly onto the Edge-Connect™
Zero Component Cost on the PCB
Maximizes available PCB real-estate
Eliminates the cost of a connector on every board
Requires just one tiny locating hole
Low profile edge access ideal for use with stacked PCB’s with no access headroom
Cant be connected backwards due to keyed feature
Standard or custom design configurations available
Alternative pitch? Three castellated edges? No problem!
No Header! - No Brainer!
Instead of using the usual space-costly Surface Mount or Plated Through-Hole connectors, Edge-Connect™ has springy gold-plated contacts that connect directly to the literal edge of the target PCB using edge castellation.
A Castellated PCB edge is a board edge that has plated through holes that are placed overhanging the edge of the board and typically made at little to no extra cost even from most cheap proto-board fab services (often a check box in the online quote is marked "Castellated Holes").
Castellated edges are commonly used on RF, WiFi, BLE and IoT sensor modules making them suitable for soldering as an SMT component onto host PCB’s using the castellated holes as pins. Edge-Connect™ allows test and programming and even debugging without first soldering the module to the host PCB. This makes it very useful for factory test and programming of the module.
ECV3-06-PKT-SWD has a castellation pitch of 1.27mm and requires a single tiny non-plated through hole to locate and hold the PCB in place.
New datasheet coming soon. Note that this product terminates in an 6 pin pin-strip connector.
Note: ECV3-10-050-20 with ribbon cable and Microchip PICkit 4 connector only supplied, Demo PCB not included.
1 x TC2030-IDC-NL
