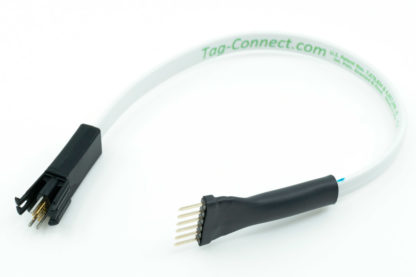

TC2030-PKT 6-Pin Cable with legs for use with Microchip PICkit 3, 4 & 5
$43.00
6 pin “legged” plug-of-nails™ to Microchip PICkit 3/4/5 programming/debugging cable using very small PCB footprint.
AVAILABLE
Description
For PICkit 3, PICkit4 and PICkit5.
Tag-Connect TC2030-PKT programming/debugging cable is primarily intended for use in development environments but is also ideal for production programming. The spring-loaded contact pins are held firmly in place by four plastic legs each of which clips securely into its own locating hole.
Tag-Connect TC2030-PKT is ideal where you need to maintain a connection to the PCB for an extended period such as when performing testing or development work.
See also TC2030-PKT-NL for applications where an even smaller footprint is required.
Ideal for both debugging and production programming, the 6 pin plug-of-nails™ cable terminates in a 6 pin 0.1″ male SIP strip.
This product is used in the following debugger/device solutions:
This product is used as part of the following solutions for particular debuggers, protocols and devices. Solutions may involve additional cables, adapters or retaining clips, as well as this product you are viewing now. Click on the solution links to see full solutions and installation instructions where applicable.
Microchip PICkit 4/SNAP for Microchip PIC, Microchip PIC32, dsPIC using PIC ICD/ICSP
Microchip PICkit 3 for Microchip PIC, Microchip PIC32, dsPIC using PIC ICD/ICSP
