TC2030-PKT-NL 6-Pin No-Legs Cable for Microchip PICkit 3, 4 & 5

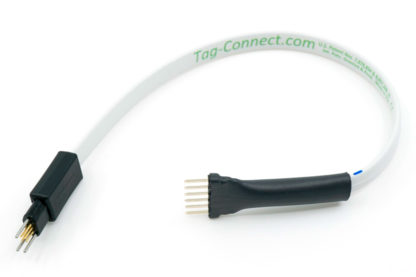

6 pin “no legs” plug of nails to Microchip PICkit 3/4/5 programming/debugging cable using very small PCB footprint.



For PICkit3, PICkit4 and PICkit5.

Tag-Connect TC2030-PKT-NL cable is primarily intended for use in production programming. It is particularly suited to environments where the connection to the PCB is of short duration, and operators are working quickly from board to board.
A major advantage of the TC2030-PKT-NL is the extremely small footprint required on the PCB (hardly any bigger than a surface mount resistor) allowing the minimum possible space on your PCB to be used for the programming connection.
The TC2030-PKT-NL (no legs) cable is also compatible with the TC2030 legged footprint allowing use of the TC2030-PKT legged cable for development work and TC2030-PKT-NL for fast programming in production.
The TC2030-PKT-NL is also suited to use for debugging and development when secured into position using a TC2030-CLIP board. See ‘Using the TC2030-MCP-NL for debugging’ on the User Information page for details.
Where a sustained connection to the PCB is required, also consider the TC2030-PKT.
Ideal for both debugging and production programming, the 6 pin plug-of-nails™ cable terminates in a 6 pin 0.1″ male SIP strip.

This product is used in the following debugger/device solutions:

This product is used as part of the following solutions for particular debuggers, protocols and devices. Solutions may involve additional cables, adapters or retaining clips, as well as this product you are viewing now. Click on the solution links to see full solutions and installation instructions where applicable.

Microchip PICkit 4/SNAP for Microchip PIC, Microchip PIC32, dsPIC using PIC ICD/ICSP
Microchip PICkit 3 for Microchip PIC, Microchip PIC32, dsPIC using PIC ICD/ICSP
