TC2050-ARM2010 ARM 20-pin to TC2050 Adapter
20-pin to 10-pin IDC adapter to allow TC2050-IDC cables to be used for ARM JTAG and ARM SWD (Serial Wire Debug) applications.

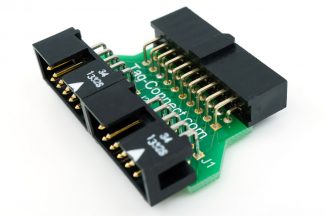

The TC2050-ARM2010 is a Tag-Connect adapter board allowing our TC2050-IDC cables to be used for ARM JTAG and ARM SWD (Serial Wire Debug) applications. Although intended for use with our patented TC2050-IDC Plug-of-Nails™ Cables, the adapter may be useful to people wishing to use 10-pin 0.1″ ribbon headers on their PCB.
Picture shows Segger JLINK, an TC2050-ARM2010 adapter pcb and a TC2050-IDC cable.
For Lauterbach programmers/debuggers with 20-pin 0.1″ female IDC connector, please see the alternative TC2050-ARM2010-M adapter instead.
Note: Adapter only supplied, debugger and cable not included!
This product is used in the following debugger/device solutions:
This product is used as part of the following solutions for particular debuggers, protocols and devices. Solutions may involve additional cables, adapters or retaining clips, as well as this product you are viewing now. Click on the solution links to see full solutions and installation instructions where applicable.
STLINK-V3SET for ST STM32 using JTAG, SWD (via. ARM20)
PEmicro/P&E Multilink ACP for ARM Cortex using JTAG, SWD
PEmicro/P&E Cyclone ARM for ARM Cortex using JTAG, SWD
PEmicro/P&E Multilink Universal/FX for ARM Cortex using JTAG, SWD
PEmicro/P&E Cyclone LC/FX Universal for ARM Cortex using JTAG, SWD
ST-LINK/V2 for ST STM32 using JTAG, SWD
Segger J-LINK for ARM, ARM Cortex using JTAG, SWD
