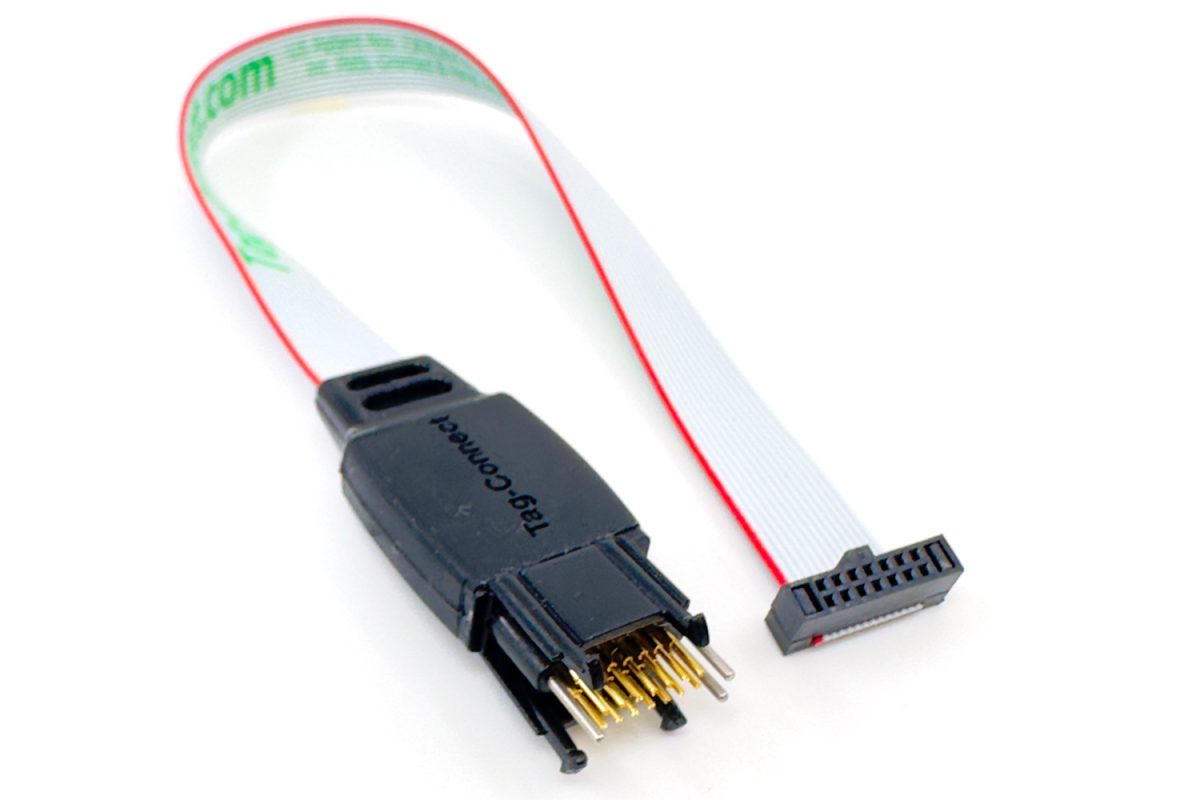

TC2070 14-pin Plug-of-Nails™ (with legs) to 14-pin 0.05″ female IDC



14-pin Plug-of-Nails™ programming cable – With Legs Version

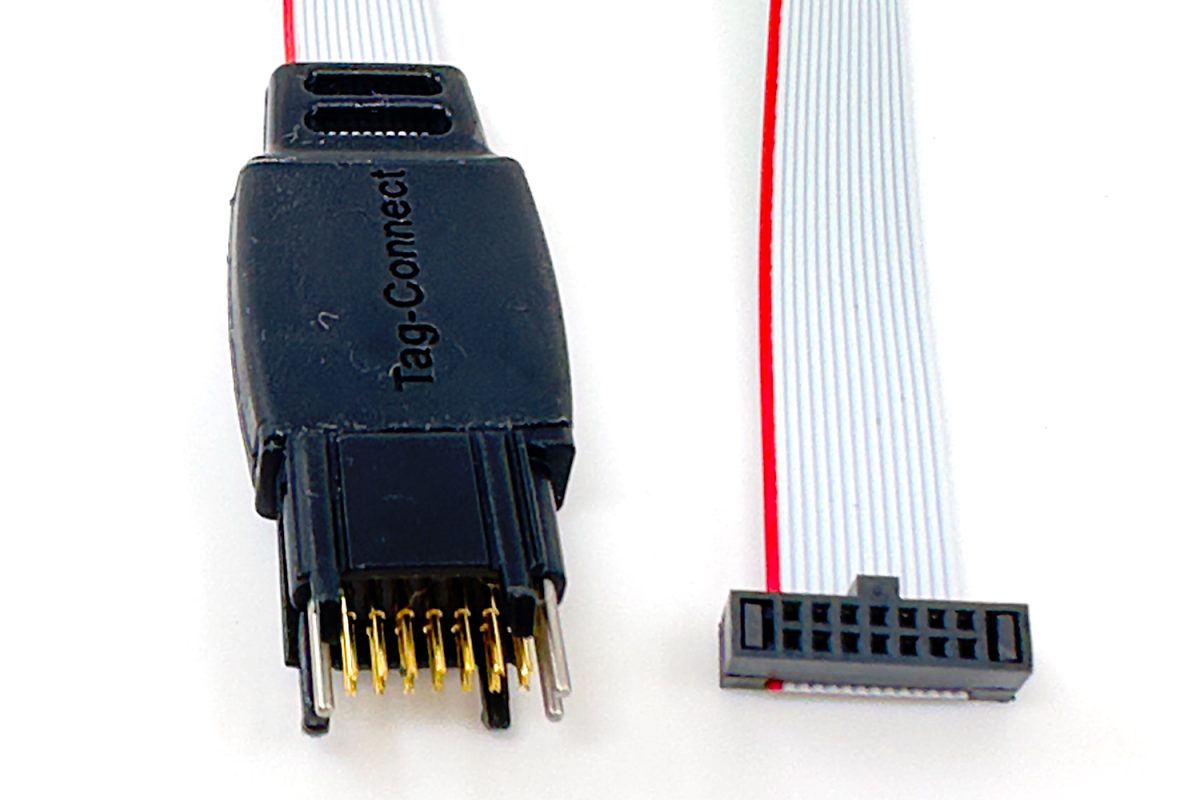

Fitted with 14-pin (2×7) 0.05″ ribbon cable connector.

For TC2070 footprint specifications, please download the similar TC2070-IDC Datasheet below (pdf)

See also TC2070-IDC-NL-050 (no-legs) version.

Note that for many applications where 14-pin connectors are natively used by a debugger (such as MSP430, TI and ADI DSP’s, Renesas MCU’s etc) we offer some excellent alternative solutions that in many cases can reduce the footprint size on your PCB to 6 or 10-pins as well as reducing the price per cable.

Datasheet (for footprint information only)

This product is used in the following debugger/device solutions:

This product is used as part of the following solutions for particular debuggers, protocols and devices. Solutions may involve additional cables, adapters or retaining clips, as well as this product you are viewing now. Click on the solution links to see full solutions and installation instructions where applicable.

STLINK-V3SET for ST STM32 using JTAG, SWD (via. ST-14), UART
STLINK-V3 for ST STM32 using JTAG, SWD (via. ST-14), UART
STLINK-V3MINI for ST STM32 using JTAG, SWD (via. ST-14), UART
