TC2030-MCP-NL-10 6-Pin Cable with RJ12 Modular Plug (for Microchip ICD) 10″ Version

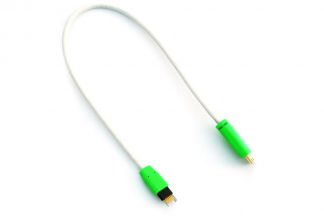

Longer 10″/254mm version of TC2030-MCP 6-Pin “No Legs” Cable with RJ12 for Microchip ICD.
This is the 10″/254mm (longer) version of the TC2030-MCP-NL programming cable.
Note that 10″ exceeds the Microchip maximum?cable length specification of 8″ and is not supported by Microchip. However, the additional length provides increased convenience and has not been known to cause problems in general use.
Microchip to date has only specified the maximum length of the programming cable and not the typical additional length of PCB traces needed between the RJ12 connector (which might be on the edge of the PCB) and the MCU. With the much smaller TC2030 footprint you can usually put the ICD connection right at the MCU.
This product is used in the following debugger/device solutions:
This product is used as part of the following solutions for particular debuggers, protocols and devices. Solutions may involve additional cables, adapters or retaining clips, as well as this product you are viewing now. Click on the solution links to see full solutions and installation instructions where applicable.
Microchip ICD4 for Microchip PIC, Microchip PIC32, dsPIC using PIC ICD/ICSP (10" cable)
CCS Programmers for Microchip PIC, Microchip PIC32, dsPIC using PIC ICD/ICSP (10" cable)
Microchip ICD 3 for Microchip PIC, Microchip PIC32, dsPIC using PIC ICD/ICSP (10" cable)
